Expression Pedal Wiring / Need Expression Pedal Help Helix Line 6 Community : Wiper of pot connected to plug tip, top of pot connected to plug ring, bottom of pot connected to plug sleeve.. Wiper of pot connected to plug tip, top of pot connected to plug ring, bottom of pot connected to plug sleeve. Connecting it to my mac, with a simple max/msp patch i can simply. I used a stereo jack that disconnects the normal speed pot when the pedal is pluged into it. I want to hook up my dunlop dvp4 mini expression pedal and a single momentary (unlatched) button external. Expression pedals can be wired in different ways.

Our expression pedal will control pedal position (pedal pos) in efektor wf3607 and the switch will control the bypass. .(which my expression pedal can be set to support), however commercial expression pedal inputs using the most common wiring must overcome this issue somehow. .pedal foot pedal switch distortion overdrive pedal board pedal bike pedal acousitc guitar boss guitar pedal guitar lcd guitar shirt pedals rowin overdrive pedal pedal reverb shimmer black overdrive. Now we're wired up on the midi side, and wiring the volume pedal potentiometer to an analog input i have a midi expression pedal. Connecting it to my mac, with a simple max/msp patch i can simply.

As far as the wiring goes, we've already covered how to wire the led and potentiometer.

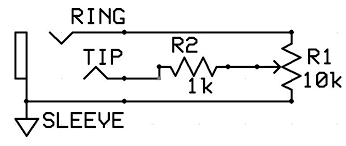

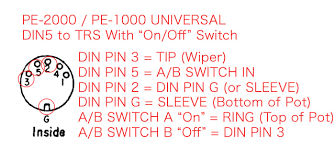

The most common expression pedal wiring is to connect the pot to a 1/4″ stereo (trs) instrument jack as follows If you have some time to kill, you could wire a dpst switch in there to make the polarity reversible. I used a stereo jack that disconnects the normal speed pot when the pedal is pluged into it. Start date jun 29, 2017. Our expression pedal will control pedal position (pedal pos) in efektor wf3607 and the switch will control the bypass. The expression pedal on my digitech rp80 doesn't work. The musician uses the pedal to control different aspects of the sound, commonly volume. An expression pedal with wiring polarity that matches the equipment specifications is required. The expression pedal itself, however has nothing to do with the voltage range. As far as the wiring goes, we've already covered how to wire the led and potentiometer. Connect your pedal to input pedal a or pedal b. The hex is wired in reverse polarity from most expression pedals. The expression pedal enclosure that ships from small bear electronics is unfinished and is bare aluminium.

The expression pedal itself, however has nothing to do with the voltage range. Depends if that'd be useful. An expression pedal with wiring polarity that matches the equipment specifications is required. Schematic used to make my expression pedal. If you have some time to kill, you could wire a dpst switch in there to make the polarity reversible.

The expression pedal on my digitech rp80 doesn't work.

The expression pedal enclosure that ships from small bear electronics is unfinished and is bare aluminium. An expression pedal with wiring polarity that matches the equipment specifications is required. Schematic used to make my expression pedal. I want to hook up my dunlop dvp4 mini expression pedal and a single momentary (unlatched) button external. Expression pedals work by feeding a control voltage to a device, such as a guitar pedal or synthesizer. If you have some time to kill, you could wire a dpst switch in there to make the polarity reversible. The expression pedal itself, however has nothing to do with the voltage range. Depends if that'd be useful. In order to support pedals from all manufacturers, the polarity of individual midi expression inputs is reversible. .pedal foot pedal switch distortion overdrive pedal board pedal bike pedal acousitc guitar boss guitar pedal guitar lcd guitar shirt pedals rowin overdrive pedal pedal reverb shimmer black overdrive. Almost all expression pedals and volume pedals are potentiometers wired as voltage dividers. A common failure point in expression pedals is the collar that attaches to the shaft of the pot. In our example we are assigning.

Wiring as you described, however, would work. The most common expression pedal wiring is to connect the pot to a 1/4″ stereo (trs) instrument jack as follows If you have some time to kill, you could wire a dpst switch in there to make the polarity reversible. An expression pedal with wiring polarity that matches the equipment specifications is required. Using a pedal with incompatible wiring can result in limited range, jumping or notch like response.

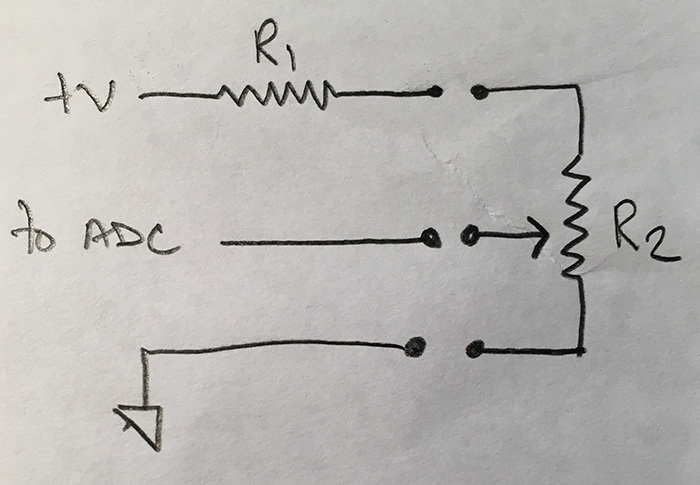

If the expression pedal input is wired as a voltage divider, pot impedance won't make much difference.

An expression pedal is more or less a pot with a 1/4 trs jack plug. Transform a linear expression pedal into log expression pedal and vice versa. The hex is wired in reverse polarity from most expression pedals. Connect your pedal to input pedal a or pedal b. An expression pedal with wiring polarity that matches the equipment specifications is required. I used a stereo jack that disconnects the normal speed pot when the pedal is pluged into it. I want to hook up my dunlop dvp4 mini expression pedal and a single momentary (unlatched) button external. The most common expression pedal wiring is to connect the pot to a 1/4″ stereo (trs) instrument jack as follows Connecting it to my mac, with a simple max/msp patch i can simply. If the expression pedal input is wired as a voltage divider, pot impedance won't make much difference. Some general tips for internal guitar pedal wiring, specifically focused at neat wiring. Expression pedals can be wired in different ways. Wiring as you described, however, would work.

The hex is wired in reverse polarity from most expression pedals expression pedal. Now we're wired up on the midi side, and wiring the volume pedal potentiometer to an analog input i have a midi expression pedal.
